برند : Opti Medical
دستهبندی : تجهیزات آزمایشگاهی

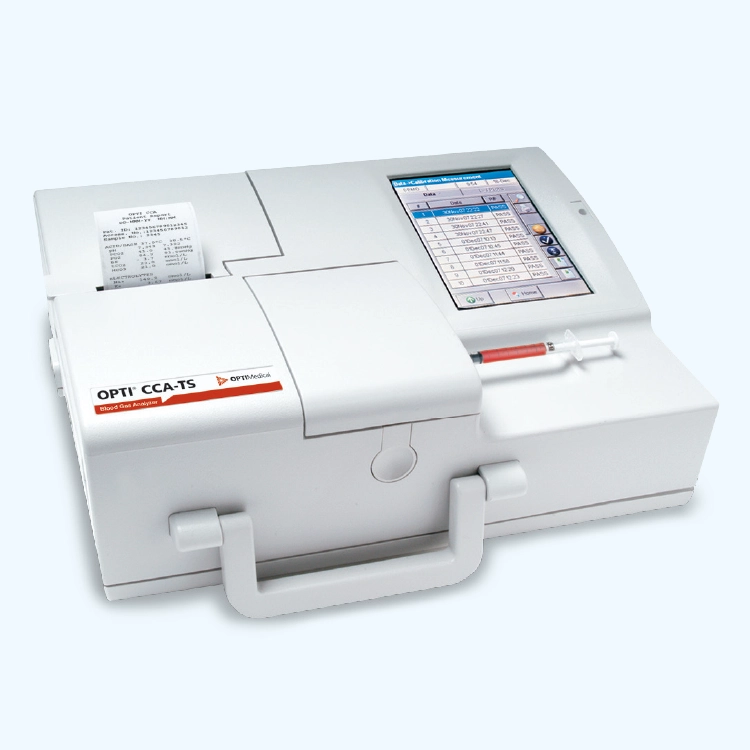

دستگاه بلادگاز آنالایزر مدل CCA-TS
مشخصات فنی:
| 125µL (60µL for B60 cassette) | Sample Volume |
| 90seconds> | Calibration Time |
| 120seconds> | Measurement Time |
| 210seconds> | Typical Cycle Time |
| 10-30°C (50–86°F) | Operating Temperature |
| Whole blood, serum or plasma | Sample Type |
| Optical fluorescence, reflectance | Measurement Principle |
| Syringe, capillary or ComfortSampler® | Sample Application |
|
200 patient records 70QC samples per level 105SRC samples per level 300user IDs and passwords |
Data Storage |
| Password-protected analyzer setup and delete functions | Password |
| User-definable QC lockout functions | QC Lockout |
| 124x362x230 mm | Height x Width x Depth |
| 5.5kg with rechargeable battery pack | Weight |
| 120or240AC,50–60 Hz | Voltage/Frequency |
| 110VA | Power Consumption (max.) |
| Serial, Ethernet | Interface |
| CE, UL and IVDD | Approvals |
|
Tests |
Cassette |
| pH, PCO2, PO2, tHb, SO2 |
B-Type |
| pH, PCO2, PO2, tHb, SO2, Na+, K+ |
E-Type |
| pH, PCO2, PO2, tHb, SO2, Na+, K+, Ca++ |
E-Ca Type |
| pH, PCO2, PO2, tHb, SO2, Na+, K+, Cl– |
E-Cl Type |
| pH, PCO2, PO2, tHb, SO2, Na+, K+, GLU |
E-GLU Type |
| pH, PCO2, PO2, tHb, SO2, Na+, K+, BUN | E-BUN Type |
| pH, PO2, tHb, SO2, LAC | B-LAC Type |
